The Dansensor MAP Check 3 Pressure allows you to measure pressurized gases directly from a pressurized source like a gas mixer or buffer tank. This pressure gas analyzer can measure both O2 and CO2 as well as check for impurities and measure the balance of gases. With feedback control and high efficiency, the Dansensor MAP Check 3 Pressure is certain to reduce waste and ensure cost savings in Modified Atmosphere Packaging.
Among other benefits, Dansensor MAP Check 3 Pressure:
- Comes with a color touch screen display
- Can automatically stop your MAP process if the wrong gas mix is detected
- Zirconia sensor
- Works with inlet pressures from 2-10 bar (30-145 psi)
On-line gas analyzers:
The Dansensor MAP Check 3 Pressure is part of a product family of several tools for gas analysis for Modified Atmosphere Packaging Quality Assurance. Learn more about the other products in the product line below.
- Dansensor® MAP Check 3
Dansensor MAP Check 3 is a cost-effective and reliable on-line gas analyzer for both horizontal and vertical flow wrappers that allow manufacturers to spend up to 50% less gas in the MAP process.
-

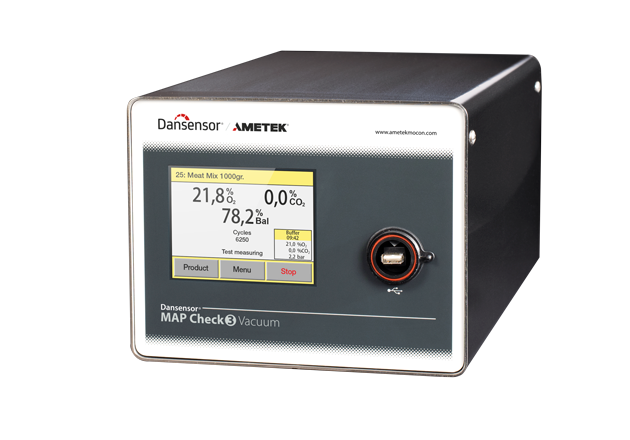

Dansensor® MAP Check 3 Vacuum
The Dansensor MAP Check 3 Vacuum ensures that every package is flushed to spec and notifies the operator in case of low or high gas concentrations and automatically stops the MAP process if gas limits are exceeded. The automated testing process minimizes both labor costs and waste. Step up from Quality Control to Quality Assurance with the Dansensor MAP Check 3 Vacuum.
-
Dansensor® ISM-3
With the Dansensor® ISM-3 operators are alerted and oxygen levels are automatically adjusted, if the oxygen monitor recognizes oxygen levels that do not comply with the preset limits. The digitally controlled Dansensor ISM-3 for O2 monitoring offers unparalleled reliability and accuracy as well as low maintenance demands.
Benefits
- Ensures that the right gas mix is supplied to your process
- Logs and displays actual gas mix
- Works with inlet pressures from 2-10 bar (30-145 psi)
- Can stop your process before the wrong gas mix is supplied
Features
- 5” colour touch screen
- Improved data logging capabilities with USB, Ethernet, TCP Modbus
- Ability to remote control the Dansensor MAP Mix Provectus gas mixer
|
Available sensors
|
O2 sensor
|
CO2 sensor
|
|
Key features
|
Our fastest and most accurate oxygen sensor
0-100% range
|
Temperature controlled dual beam infrared carbon dioxide sensor, 0-100% range
|
|
Accuracy
|
± 0.01% absolute range below 1% O2
± 1% relative in range above1% O2
|
± 0.5% absolute
± 1.5% relative of reading
|
|
Heating time
|
10 Min.
|
8 Min.
|
|
General standard features
|
|
Models
|
Oxygen only, carbon dioxide only or combined oxygen and carbon dioxide
|
|
Connections
|
2 x RS232C, LAN 10/100 Mbit (Modbus TCP), USB, current or voltage output, 24 VDC logic for start/stop of process and alarms
|
|
Power supply
|
103 -132 / 207-264 VAC (auto ranging), 47- 63 Hz
|
|
Dimensions
|
192 x 230 x 375 mm (H x W x D)
|
|
Weight
|
8.5 - 11.5 kg (depending on model)
|
|
Compliances
|
|
|
Gas inlet pressure
|
2 to 10 bar (30 to 145 psi)
|
|
Gas media
|
Dry, clean and non-corrosive gasses
|
|
Accessories (optional)
|
|
Protection kit
|
IP45 protection (NEMA 3S)
|
Consumable
- Filters
- Sampling kits
- Hoses
Accessories
- PC software for MAP Check 3
- Cables for PC connection
- Assembly kit for MAP Check 3 / MAP Mix Provectus
- IP 45 tightening kit
Service & Support Options
- Basic Preventative Maintenance Plan
- Plus Preventative Maintenance Plan
Applications:
- On-line monitoring of pressurized gas content directly from a bas mixer, a buffer tank or any other pressurized source
- Above combined with real-time control of package flushing via an advanced GasSave function
For a variety of food and beverage packages using MAP.
Some examples of our customer applications include:
-Snack Foods - Bakery - Pizza - Meats & Cheese - Fish - Pet Foods - Coffee - Pharmaceutical Packaging - Medical Device
