Dansensor® LeakPointer® 3 and LeakPointer® 3+ provide reliable, non-destructive leak detection for food packaging. Fast and precise test results help you get back on track quickly when leaks occur. These highly accurate instruments detect even the smallest leaks (<50 microns) to keep compromised packages from reaching retailers and consumers, and to help you calculate suitable shelf life parameters.
The testing set-up is simple and easy to manage while the icon-based, multilingual touch screen provides an intuitive user interface. Just place the package, select the correct product on screen and close the lid to begin the test.
Leak detectors:
Besides the Dansensor LeakPointer 3 and Dansensor LeakPointer 3+ we offer additional products for leak detection in Modified Atmosphere Packaging. These are described below.
- Dansensor® LeakPointer® H2O
Dansensor LeakPointer H2O is a premium water bath for visual leak testing (bubble test) on almost all types of packaging. The leak detector is used for quality control checks, R&D package testing and process optimization on the packaging line.
- Dansensor® LeakMatic ll
Dansensor LeakMatic ll is preferred by many operators because of its ability to test 4-6 packages per minute, which can be attributed to the non-destructive seal testing method it applies. Besides, this leak detection equipment is recognized for reducing the amount of waste in MAP processes.
- Dansensor® Lippke® 5000
Dansensor Lippke 5000 provides reliable seal strength and pressure leak testing of many types of packaging. It can be used production, laboratory environments and throughout the supply chain to test package integrity.
- Dansensor® Lippke® VC1400
Dansensor Lippke VC1400 provides reliable seal strength and pressure leak testing of many types of packaging. It can be used for quality control checks, R&D package testing and process optimization on the packaging line.
Features
- Non-destructive leak testing
- Reliable quality control of MAP – test packaging line setting and shelf life parameters
- Easy-to-use with intuitive graphic user interface
- Fast and accurate, even when testing multiple packages at once
- Avoid inconsistencies and protect brand integrity
Benefits
- Find leaks as small as 50 microns – hole size calculated automatically
- Test auto-starts when lid closes
- Easy operation and set-up with intuitive touch screen
- Auto data collection and optional export via LAN or USB
- Optional text fields, validation and prompts• Integrated Delta-P meter used to determine test settings
- Add USB barcode scanner or printer to simplify workflows
- PackFix, PackBase and PackTray accessories improve accuracy and convenience
- Pair with LeakPointer H2O to pinpoint location of leaks
|
Available configurations
|
Dansensor LeakPointer 3
|
Dansensor LeakPointer 3+
|
|
Applications
|
Non-destructive leak tests on individual flexible or rigid MAP packages
|
Non-destructive leak tests on individual or multiple flexible or rigid MAP packages
|
|

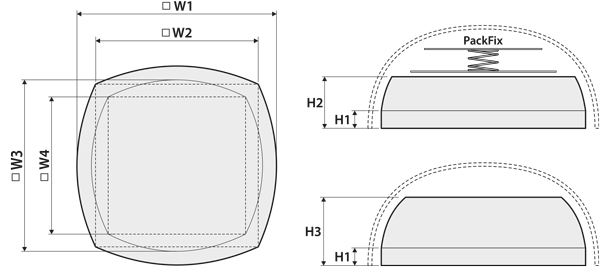

Maximum product size (mm)
See illustration in the upper right corner
|
|
|
W1
|
W2
|
H1
|
H2
|
|
With PackFix
|
325
|
295
|
40
|
86
|
|
Without PackFix
|
325
|
268
|
40
|
110
|
|
|
|
W1
|
W2
|
H1
|
H2
|
|
With PackFix
|
465
|
420
|
40
|
117
|
|
Without PackFix
|
465
|
363
|
40
|
155
|
|
|
Air supply and consumption
|
5.5 ± 0.5 bar (80 ±7 psi); Ø6/4 mm hose
Approx. 33 L per measurement; max. 162 L/min
|
Integrated vacuum pump
|
|
Power supply and consumption
|
100-264 VAC + PE, 50/60 Hz; max. 50W
|
(115V) 103-127 VAC + PE, 57-63 Hz; max. 900 W
(230V) 207-253 VAC + PE, 47-53 Hz; max. 900 W
|
|
Vacuum pressure
|
50-750 mbar
|
50-800 mbar
|
|
Dimensions (lid open) WxDxH; weight
|
400 x 617 x 698 mm; 20 kg
|
555 x 812 x 981 mm; 50 kg
|
|
Sensor type
|
NDIR CO2sensor, single beam
|
|
|
Test time
|
10-35 seconds
|
|
|
Measurement units and accuracy
|
Single package mode: estimated diameter of reference hole in microns - minimum 50 microns
Multiple package mode: measured increase of CO2in ppm/s
|
|
|
CO2 content in packages
|
Minimum 10%
|
|
|
Ambient CO2 level
|
Max 4500 ppm, recommended <1500 ppm
|
|
|
Ambient temperature
|
Operational: +2°C to +35°C Storage: -20°C to +60°C
|
|
|
Relative humidity
|
Operational: +2°C to +25°C: 10 to 90 %RH, non condensing
+25°C to +30°C: 10 to 70 %RH, non condensing
+30°C to +35°C: 10 to 50 %RH, non condensing
Storage: less than 95 %RH, non condensing
|
|
|
Number of test definitions
|
100
|
|
|
Data collection capacity and export
|
Stores test data from up to 1,000,000 tests; export to CSV file
|
|
|
Connectivity
|
LAN: RJ-45 Ethernet 10/100 Mbit/s, DHCP client or fixed IP
USB: 2 x USB (2.0 - Type A)
|
|
|
Accessories
|
PackBase (1 incl. for units sold with PackFix), PackFix, PackTray, Leak Simulation Kit, Barcode scanner
|
|
|
Calibration and service
|
12 months
|
|
|
Compliances
|
CE, China RoHS
|
|
Consumables
- Septa
- Needle kits
- Oil for Vacuum pump (LeakPointer 3+)
Accessories
- PackBase
- PackFix
- PackTray
- Barcode scanner
- Leak simulation kit
Service & Support Options
Non-destructive leak testing of MAP packages
Detection of leaks in MAP packages down to 50 microns
For a variety of food, beverage, pharmaceutical and medical packages using MAP.
Some examples of our customer applications include:
- Snack foods
- Bakery
- Coffee
- Ready-to-eat
- Pizza
- Meats
- Cheese
- Fish
- Fruit, salads & vegetables
- Pet foods
- Pharmaceutical packaging/medical devices
- Catering services
