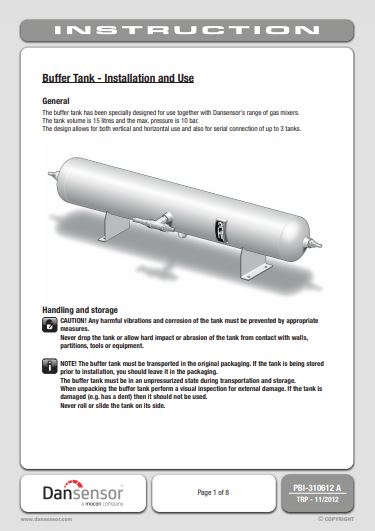

Combining the Dansensor® Buffer Tank with Dansensor® MAP Mix Provectus® or Dansensor® MAP Mix 9001+ will help improve the performance of gas mixing processes. The Modified Atmosphere Packaging gas tank has a capacity of 15 liters and a max pressure of 10 bar.
Gas mixers:
Besides the MAP buffer tank, we offer three other gas mixing products. Each of the products are described further below:
-
Dansensor MAP Mix Provectus®
Improvements in accuracy and user-friendliness are what users can expect from operating the Dansensor MAP Mix Provectus. The gas mixer relies on a new mixing principle and is capable of mixing 2-3 gases, amongst those O2, N2, CO2, and Ar. The Dansensor MAP Mix Provectus can be used with the Dansensor Buffer Tank.
-
Dansensor MAP Mix Focus
Reliability, accuracy and user-friendliness are what users can expect from Dansensor MAP Mix Focus. This mid-capacity uses an electronic mixing principal to precisely mix 2 or 3 gases and can be directly connected to the packaging line or to the Buffer Tank.

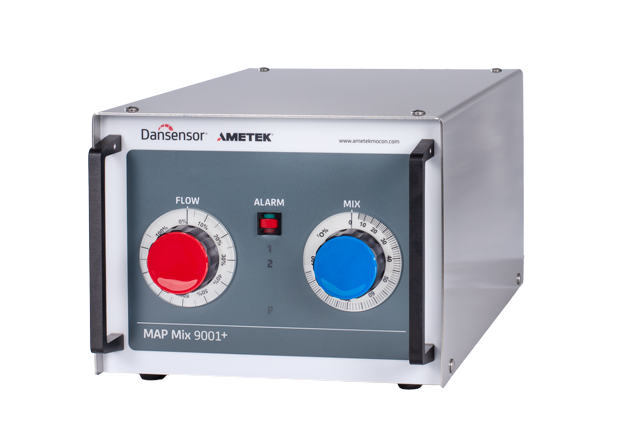

- Dansensor MAP Mix 9001+
Dansensor MAP Mix 9001+ is a low-capacity mechanical mixer which can mix 2 gases predefined gases, N2, CO2, O2, or Ar. It works with all types of packaging machines and can also be used with the Buffer Tank for tray sealing and thermoforming packaging machines.
|
Technical Specifications
|
|
Weight
|
9 kg
|
|
Volume
|
15 liters
|
|
Gases
|
N2, CO2, O2, AR and Air
|
|
Pressure
|
Max. 10 bar.
The delivered pressure relief valve opens at 10 bar.
The buffer tank can manage 1000 cycles between 0 and 10 bar.
The buffer tank will not get fatigued by cycles with a delta pressure of 2 bar.
|
|
Temperature
|
0 – 40 °C
The gas temperature can vary from 0-40°C.
|
|
Conformity
|
The buffer tank complies with the directive 97/23/EC (PED)
(Gas fluid group 1, category II, module A1).
If any other laws exist (local, national or otherwise) it is the user's responsibility to
check that these are abided by.
|
Service & Support Options
Buffer tank for premixing of large volume gases used for fast flushing of Thermoforming and Tray packaging molds.
