Blister Packaging Expands Performance in Pharmaceutical Industry

The market size for blister packaging is expected to grow at an average CAGR of 7.2% through at least 2027--primarily in industries such as healthcare, food, consumer goods, and industrial goods. Healthcare is by far the largest segment with nearly 70% of the blister packaging demand. This consistent growth stems from the cost-effectiveness of the packaging itself and the growing need for tamper-proof design in all package types.

Most blister packaging has two components: the blister cavities and the lidding or film. Typically, these are made from two different materials—which makes it difficult to recycle the single package together. In order to address this issue and improve the blister pack recycling process, several companies are working to create both components from the same material. For example, KP Films, a major player in sustainable packaging solutions, is working on innovation that is responsible and recyclable, namely a solution using PET for both the blister cavity and lidding. This single-material solution along with improvements to improve barrier properties are the biggest trends in the blister packaging market.

21 CFR Part 11 Compliant Software

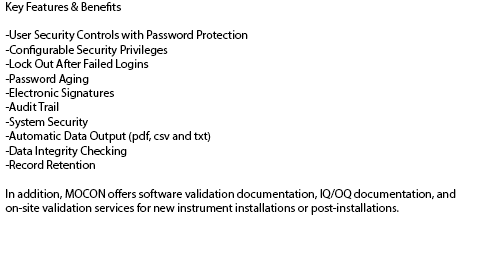

Specifically for our healthcare customers, we offer the 21 CFR Part 11 option on all MOCON Next Generation Permeation Analyzers. For a modest cost, this capability is added to our standard WinPerm 2 operation system, which meets the enhanced requirements for data security, audit trails, and user management—making FDA audits and inspections easy and hassle-free.

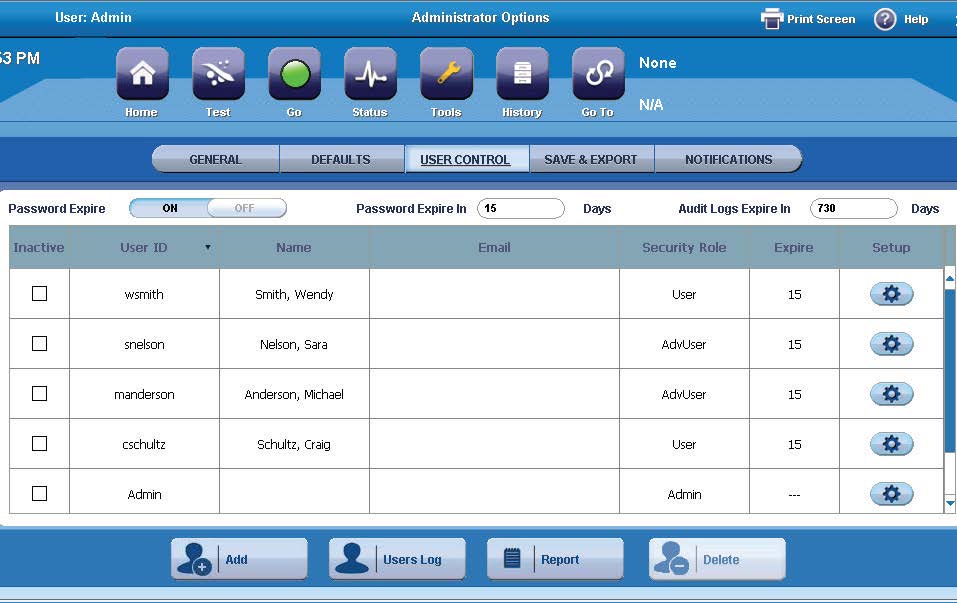

Fig. 1) WinPerm2 Software new user management and password control

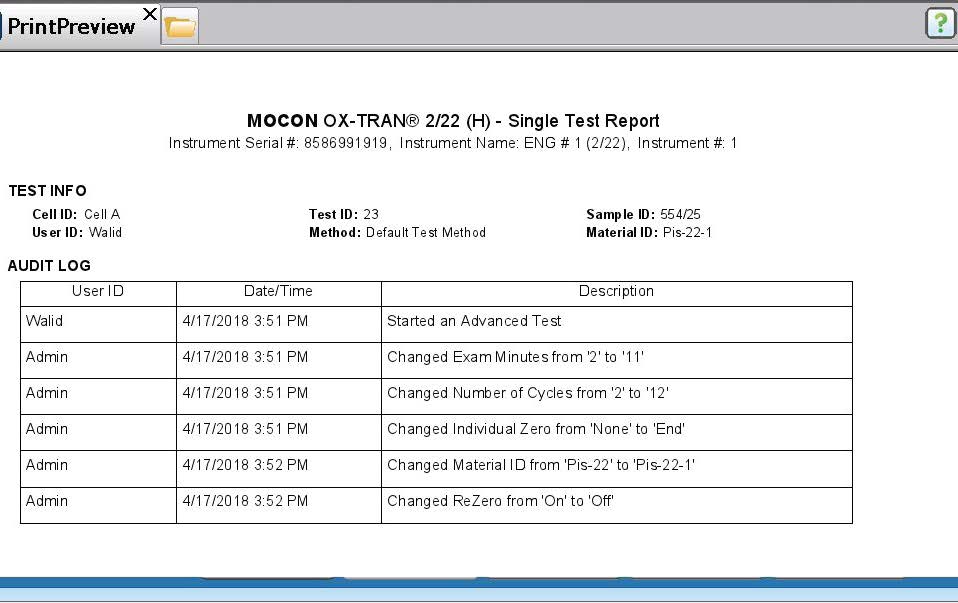

Fig. 2) 21 CFR Part 11 Audit Log for test run on a MOCON OX-TRAN® 2/22

MOCON Solutions for Easier Permeation Testing for Blister Packages

Responding to the increased demand for blister package testing, MOCON recently launched two new test cartridges to simplify your testing process:

Empty Blister Test Cartridge Applications:

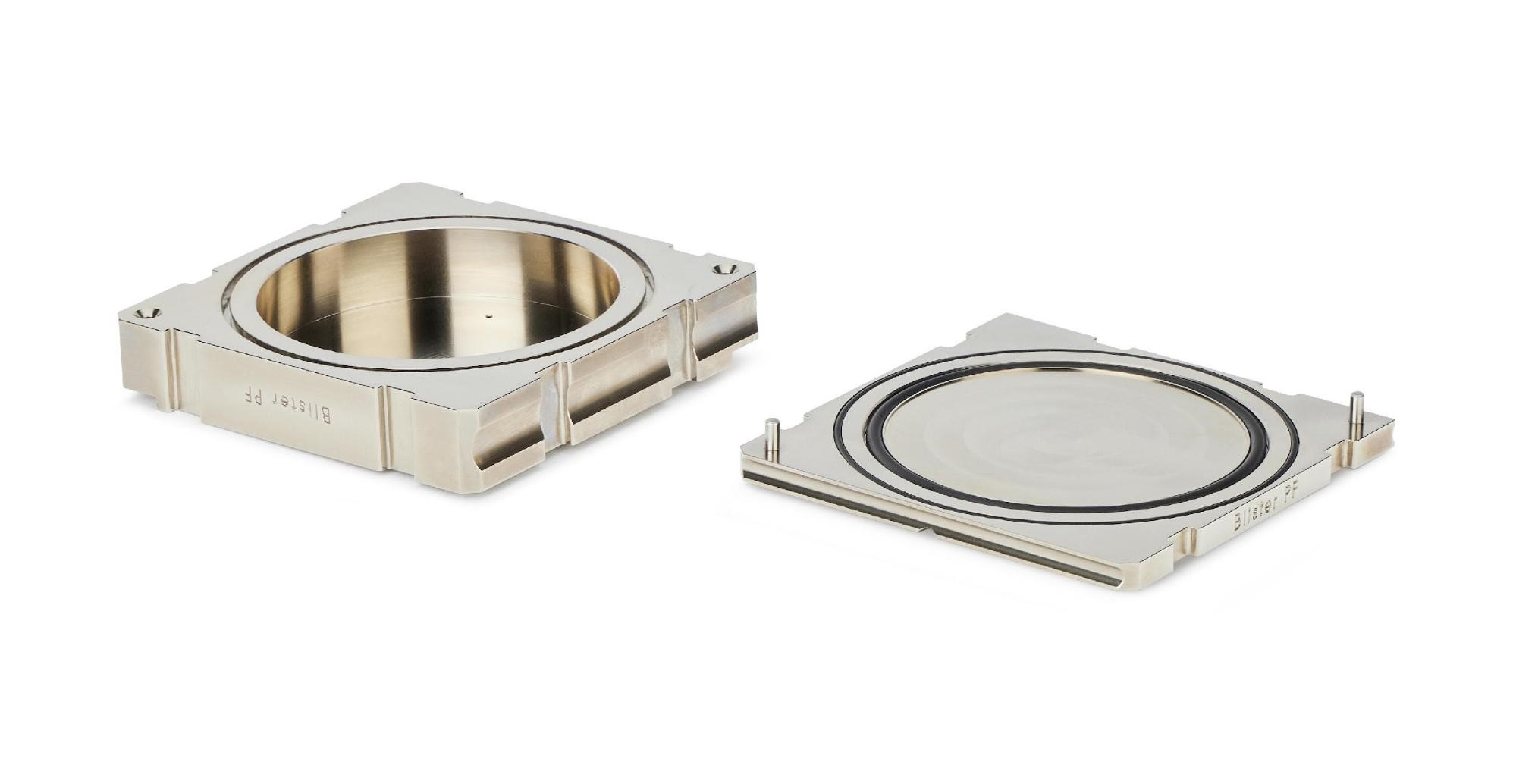

During the blister packaging production process, engineers will check for both barrier level changes and examine seal integrity between the cavity and lidding. Blister cavity or the cavity/lidding combo can be tested for OTR and/or WVTR with a special Blister Cartridge designed for empty blister samples. With the specially designed cartridge and mask setup, testing empty blister samples is easy. The Empty Blister Test Cartridge works with any of our MOCON Next Generation Film Analyzers, e.g., OX-TRAN 2/22, OX-TRAN 2/12, PERMATRAN-W 3/34, AQUATRAN 3, etc.

For more details about above applications, click below for related white paper and technical note articles:

How to Test the OTR-WVTR of Empty Blister Sample

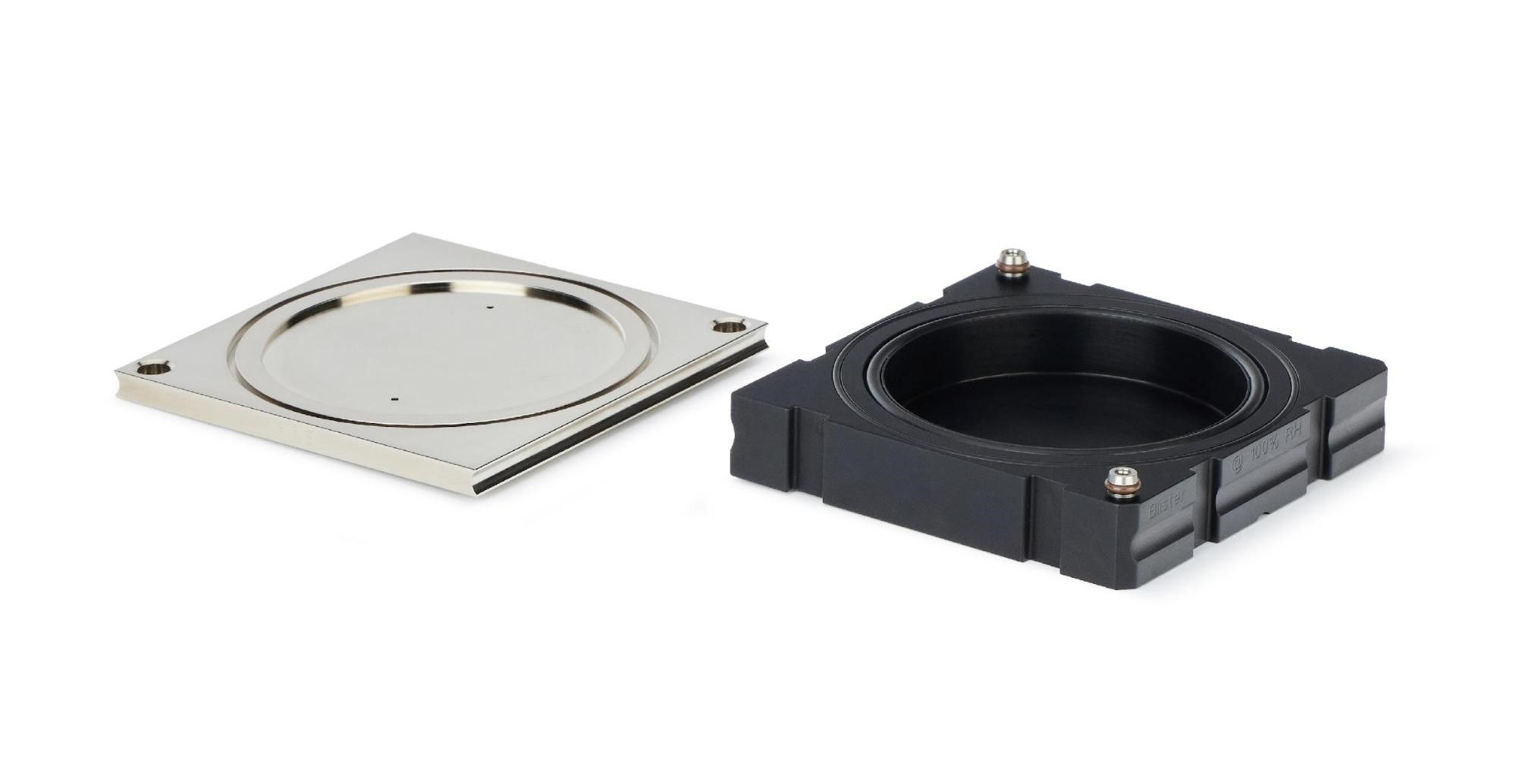

Prefilled Blister Test Cartridge Applications:
